Micro EVO 2

Micro EVO 2

€333,00
€333,00
Skip to product information
Micro EVO 2
1/3
  • Micro EVO 2
  • Micro EVO 2
  • Micro EVO 2
Micro EVO 2

Micro EVO 2

€333,00
€333,00

excl. VAT

In stock

Product code:
2701059

Chain actuator with adjustable stroke length (150/300/450/600 mm) and a force of 400 N. This actuator is typically used for larger tilt or top-hung windows.

  • Max stroke: 600mmmm
  • Power: 400N
  • Speed: mm/s
  • Voltage: 230V

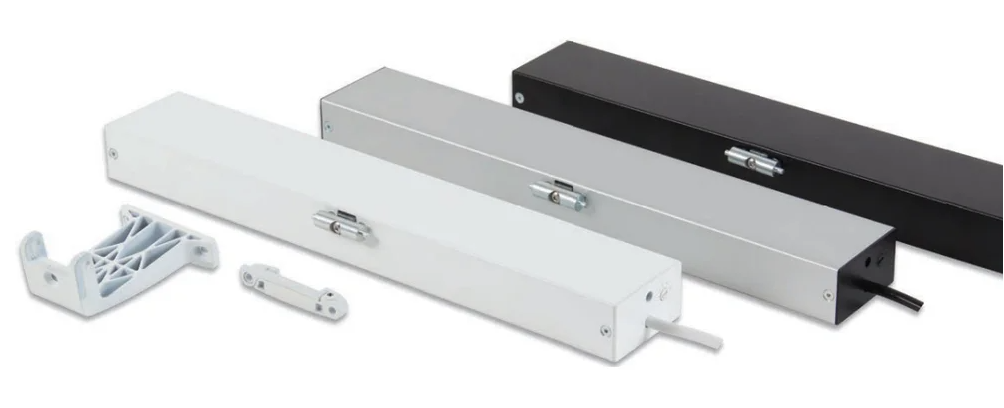

The Mingardi Micro Evo 2 is a high-performance electric chain actuator designed for use on top-hung and bottom-hung windows, domes, and skylights. This actuator is equipped with a double chain inside a metal housing, ensuring long service life and reliability.

Key features:
Maximum stroke: 150, 300, 450, 600 mm (electronically selectable)
Supply voltage: 230 V AC, 50 Hz (optionally also 24V RWA)
Colours: silver (optional: black RAL 9005, white RAL 9003)

Additional features:
Overload protection and automatic end-position adjustment.
Synchronization system enabling coordinated movement of up to four actuators without an external control unit.
Compatibility: suitable for parallel connection and installation in smoke and heat exhaust ventilation systems.

No files to download.
