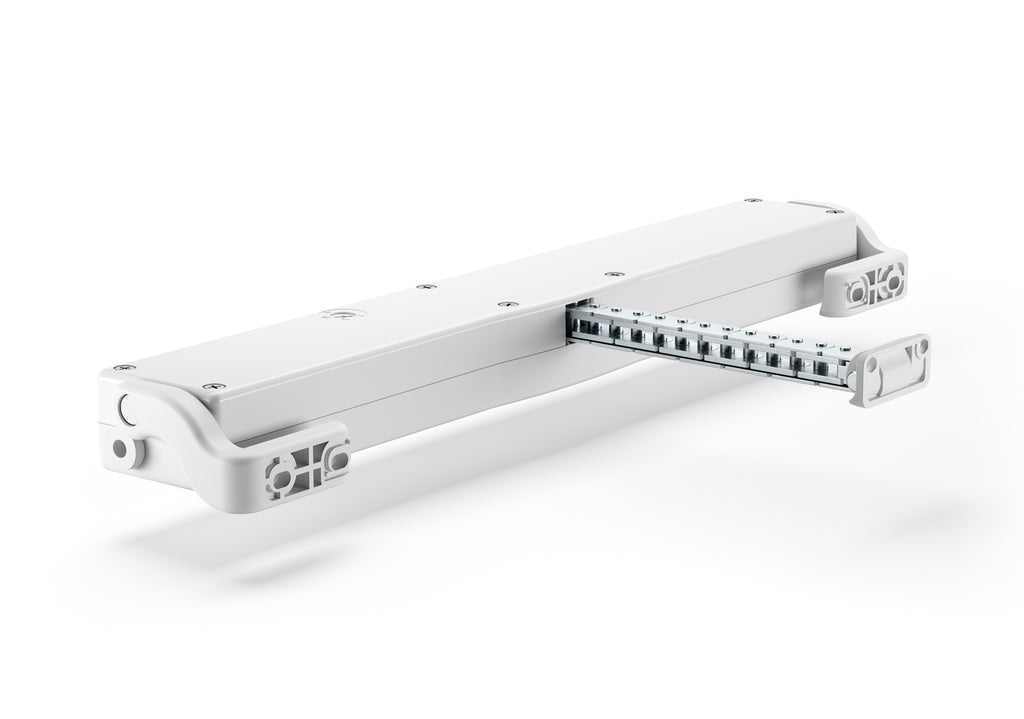

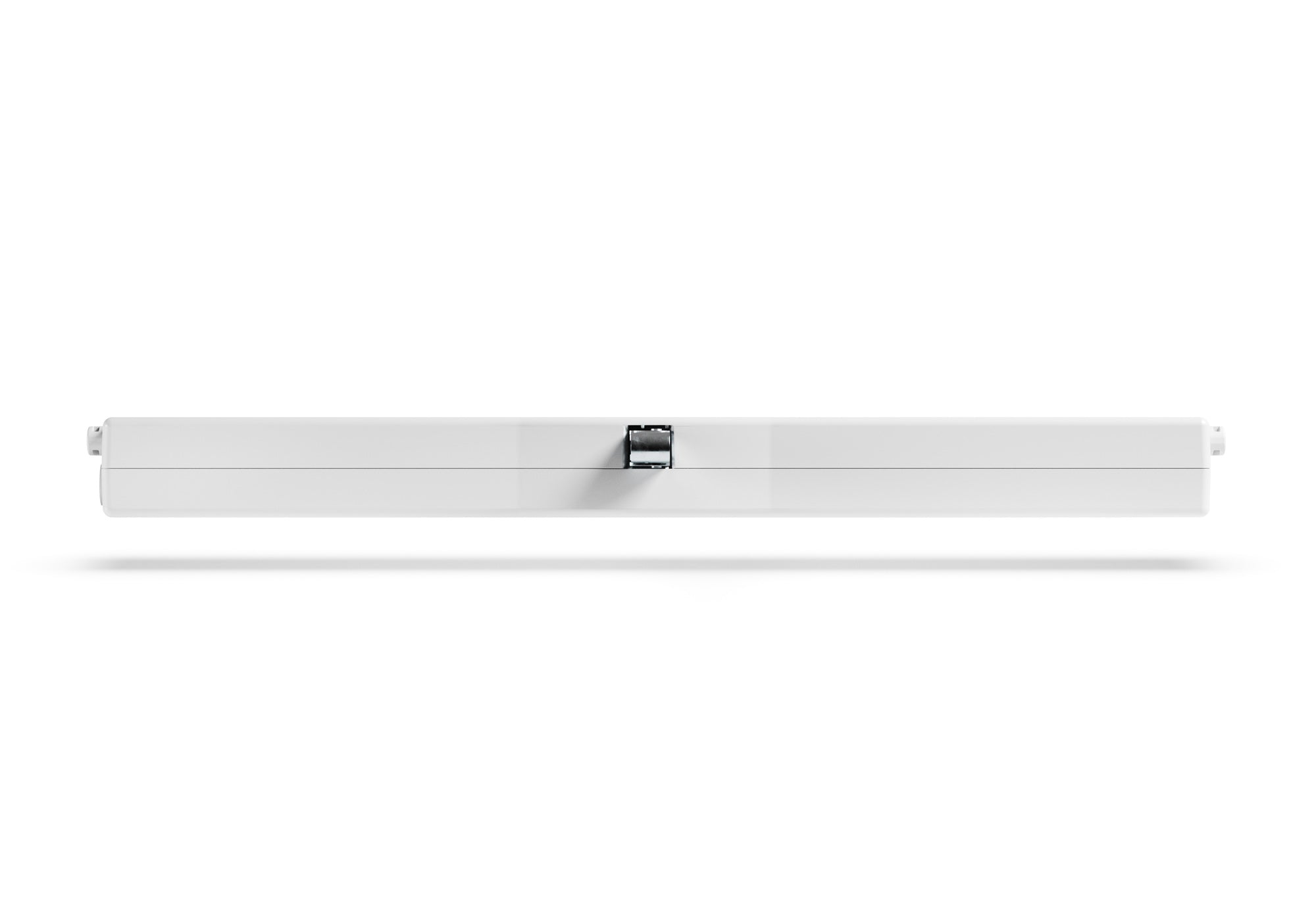

STAR 30, 230V, bílý

Chain drive ideal for windows or smaller skylights.

New generation of electric chain drive for opening and closing windows, roof windows and skylights. It has a force of 300N and an adjustable stroke from 200 to 360mm. The perfect solution for outward and inward opening windows. For wood, PVC and aluminum windows.

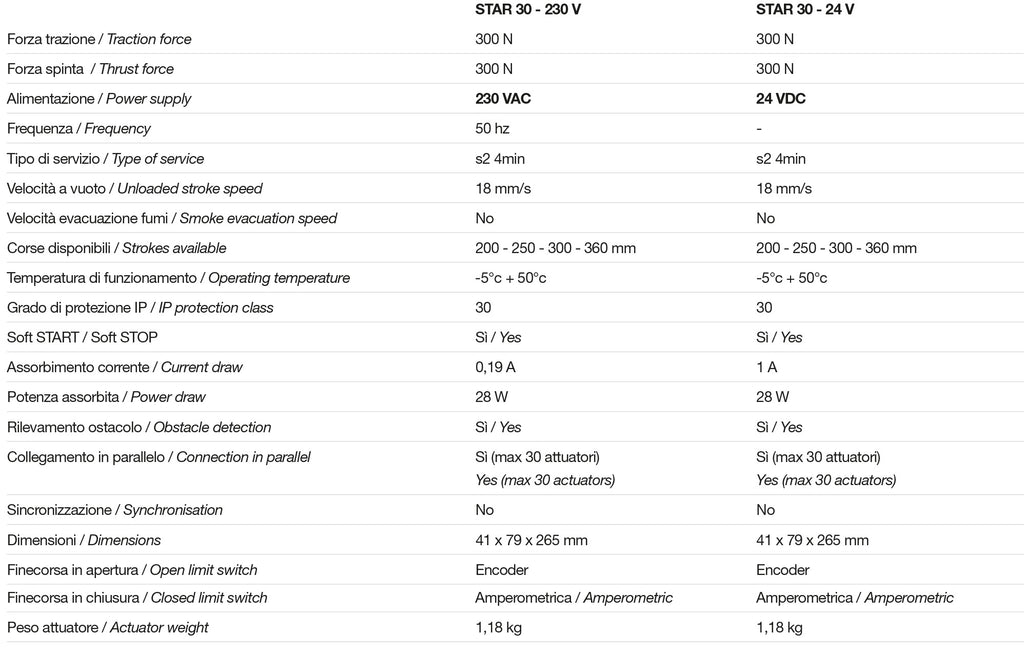

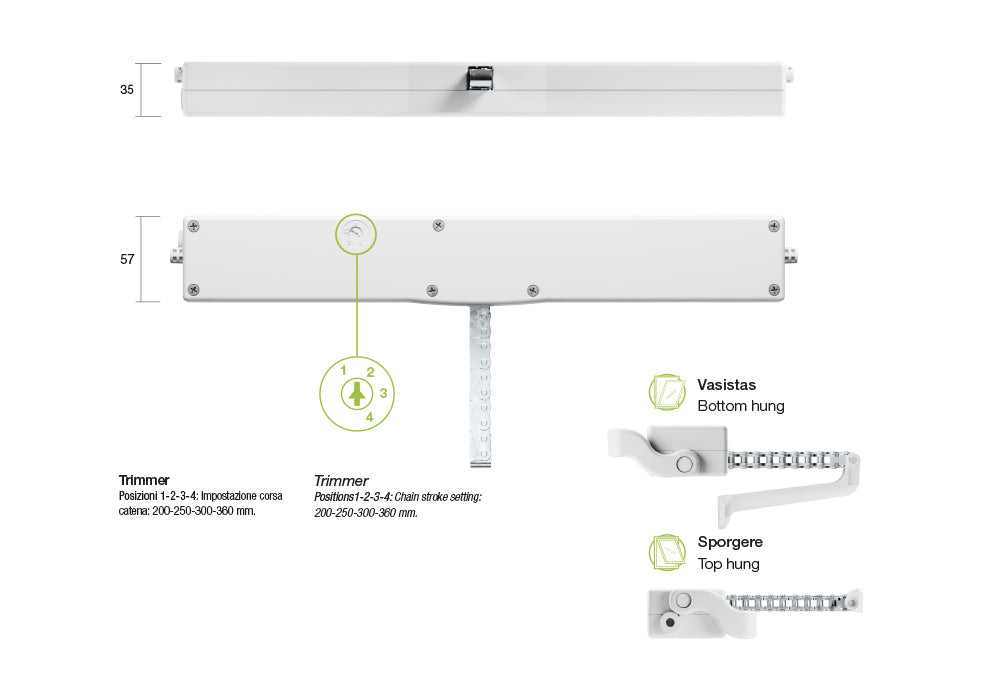

• Stroke adjustment using dip switches
• Speed 18mm/sec
• Force 300N
• Working temperature min. -5°C, max. +50°C
• Protection IP30
• Extension length 200 – 250– 300 – 360 mm

• Max stroke: 360mm
• Power: 300N
• Speed: 18mm/s
• Voltage: 230V
